A709/S355J0W Carbon Steel Coil

Name: A709/S355J0W Carbon Steel Coil
SKU: 0

A709 steel coil is high-strength alloy steel coil that is widely used in construction, bridges, ships, automobiles and other fields. The chemical composition of A709 steel coil mainly includes carbon, silicon, manganese, phosphorus, sulfur, chromium, nickel and other elements. The carbon content is relatively high, generally between 0.22%-0.29%.

Phone ：+86 13225418790

WhatsApp : +86 13225418790

Email : admin@jatsteel.com

Contact Us

Product Description

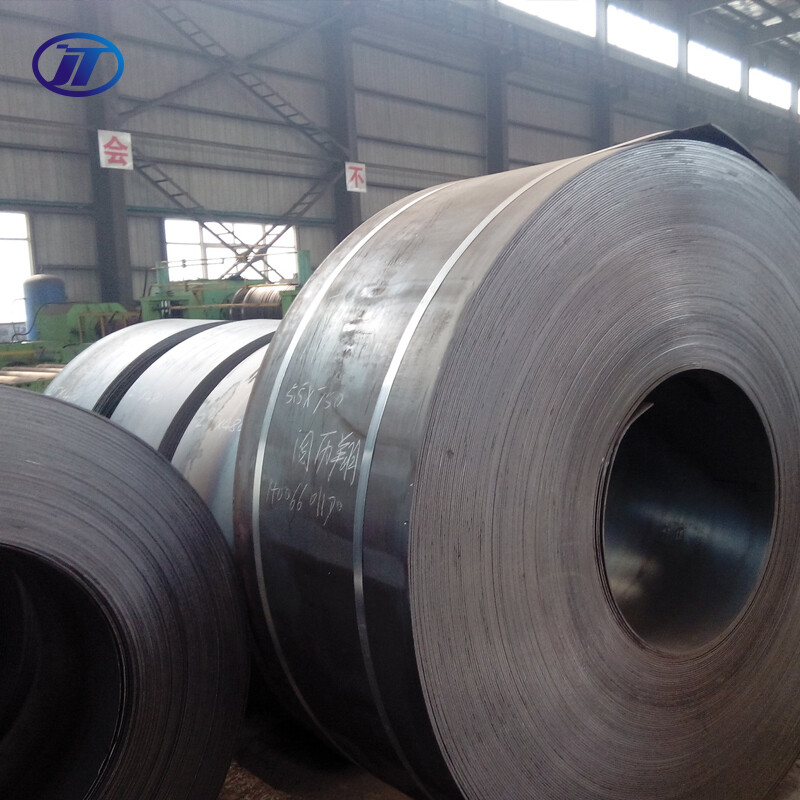

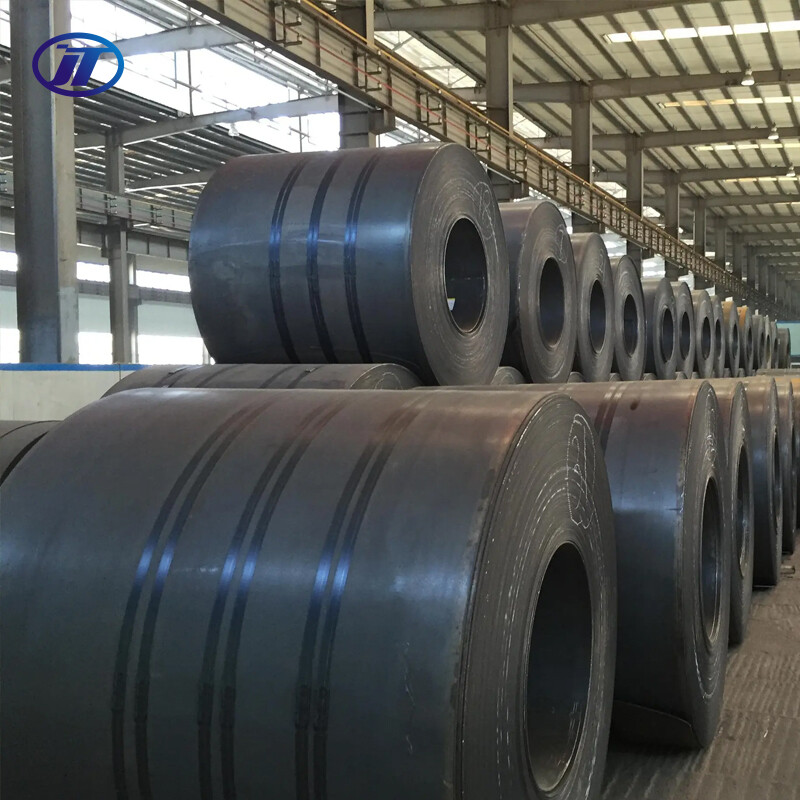

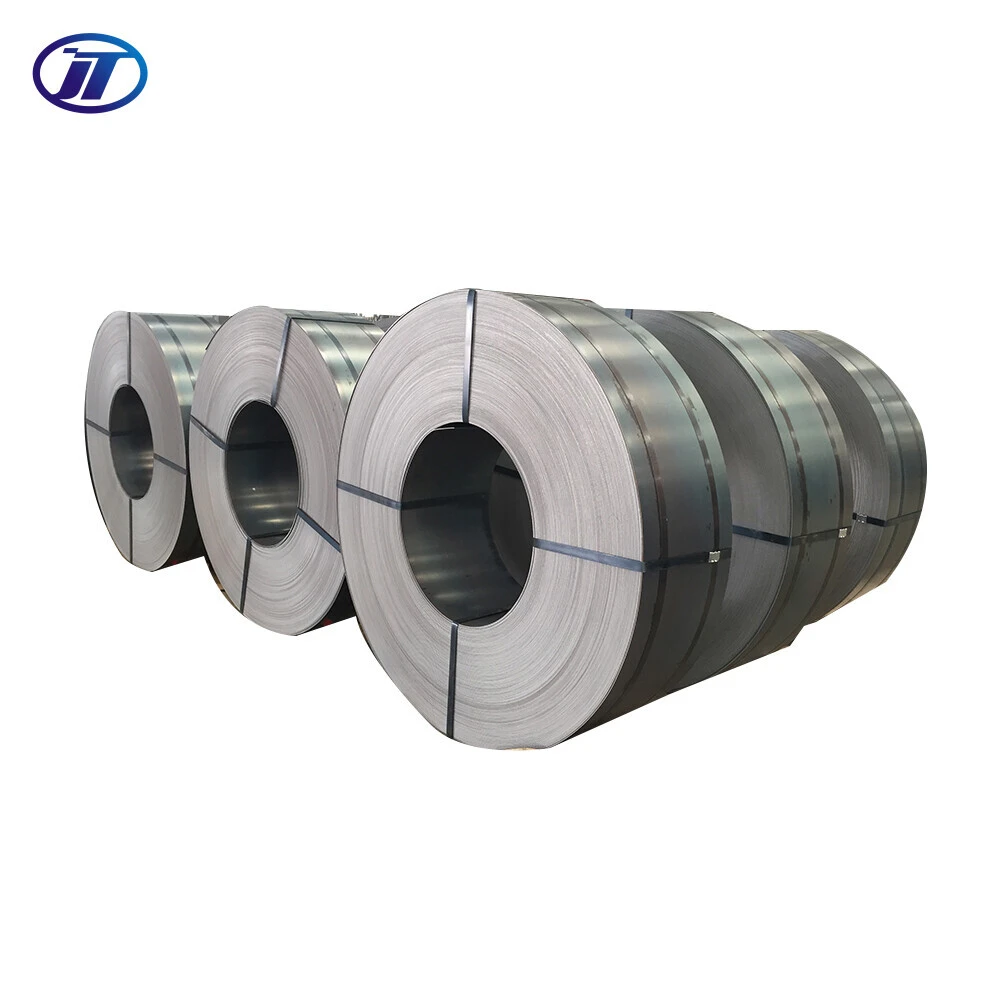

Product Display

A709 steel coil has a very diverse chemical composition including carbon, silicon, manganese, phosphorus, sulfur, chromium, nickel and other elements. The carbon content is relatively high, generally between 0.22% and 0.29%. This chemical composition ratio gives A709 steel coils high strength and wear resistance. In terms of mechanical properties, the coils have very good tensile strength, yield strength, elongation and impact toughness, ensuring they have better stability and durability when bearing load and impact. A709 carbon steel coils are commonly used as structure/steel processing parts for bridges, railways, ships, vehicles, machine tools, etc..

Product Parameters

Product Name	A709/S355J0W Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A709	50W			50	36
A709	Type A	Type B	Type C	50	≤ 20 mm	20-40 mm	40-65 mm	65-100 mm
C	0.19	0.20	0.15	0.23	0.25	0.25	0.25	0.27
Mn	0.80-1.25	0.75-1.35	0.80-1.35	1.35	-	0.80-1.20	0.80-1.20	0.80-1.20
P.max	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04
S.max	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05
Si.max	0.30-0.65	0.30-0.65	0.15-0.40	-	0.40	0.40	0.15-0.40	0.15-0.40
With..min	0.25-0.40	0.20-0.40	0.20-0.50	-	0.20	0.20	0.20	0.20
Ni.max	0.40	0.50	0.25-0.50	-	-	-	-	-
Cr	0.40-0.65	0.40-0.70	0.30-0.50	-	-	-	-	-
V	0.02-0.10	0.01-0.10	0.01-0.10	-	-	-	-	-

Mechanical Properties

A709	Thickness mm	Yield Strength min	Tensile Strength min	Elongation %
A709	Thickness mm	Yield Strength min	Tensile Strength min	200 mm	50 mm
36	≤ 100	250	400-550	20	23
50	≤ 100	345	450	18	21
50S	-	345-450	450	-	-
50W, HPS50W	≤ 100	345	485	18	21
HPS70W	≤ 100	485	585-760	-	19
100, 100W, HPS100W	≤ 65	690	760-895	-	18
100, 100W	65-100	620	690-895	-	16

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³

Scope of Application

ASTM A709 Gr.36/Gr.50/Gr.50W applies to steel structure/steel processing parts for bridges, railways, ships, vehicles, machine tools, etc. ASTM A709 Gr.36/Gr.50/Gr.50W steel includes carbon steel and high-strength low-alloy steel structural sections, plates and bars, and quenched and tempered alloy steel for structural plates.

Equivalent Material

European Standard	American Standard	Japanese Standard	France	United Kingdom
S355 J0W	A242 Gr.1 / A588	SM A50AW	E36 WB3	WR 50B
European Standard Old	India	Russia	International	National Standard
Fe510 C2KI	Fe510 C2K1	17G1S	Fe 355W	350 AAT

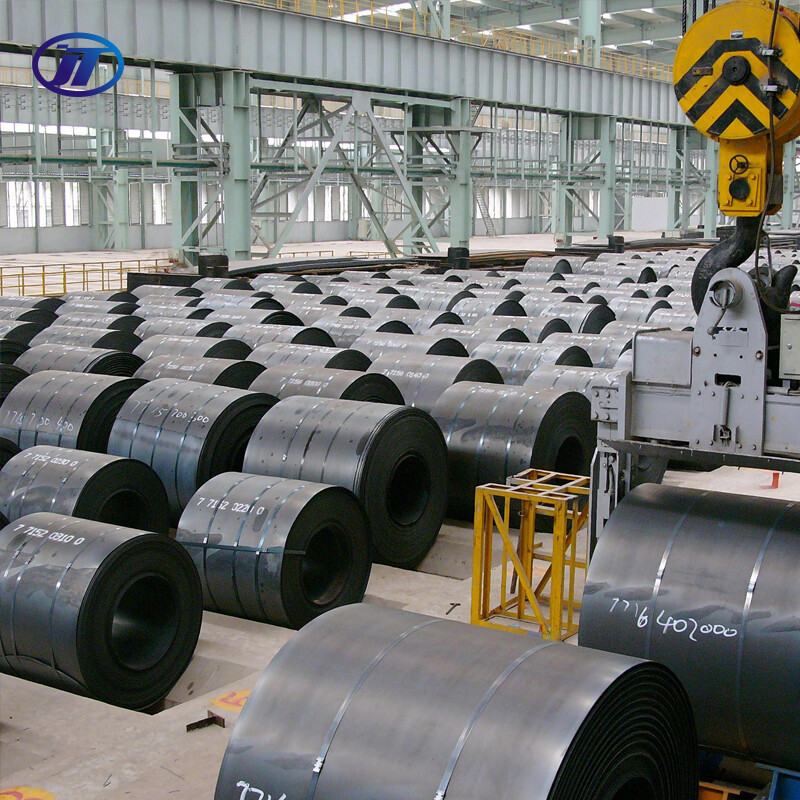

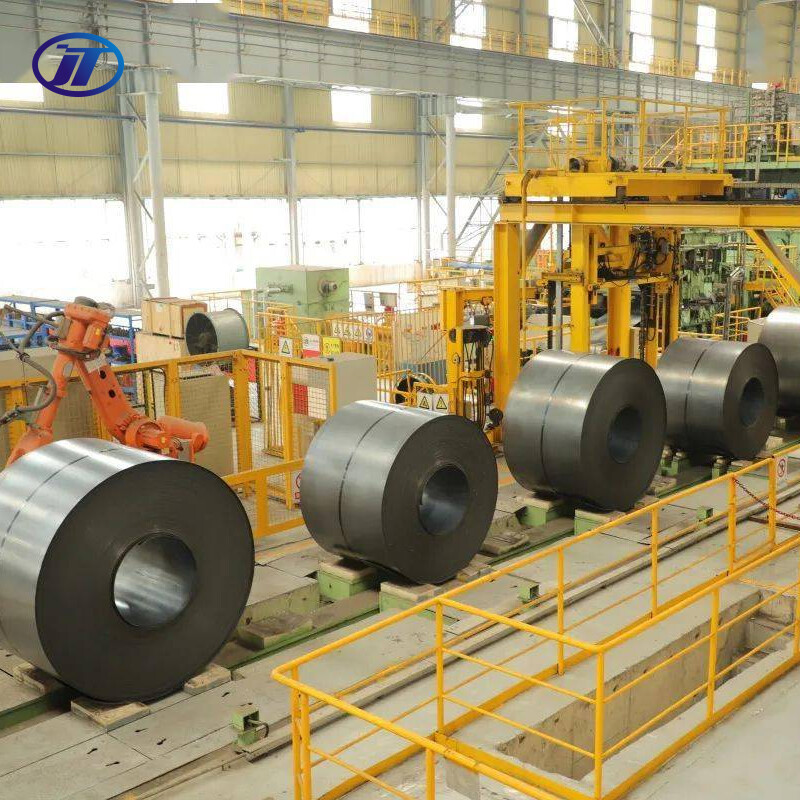

Factory Display
