A516 Pressure Vessel Carbon Steel Coil

Name: A516 Pressure Vessel Carbon Steel Coil
SKU: 0

A516 vessel steel coil is made of a high-quality boiler and pressure vessel steel that is very suitable for low to medium temperature applications.

Phone ：+86 13225418790

WhatsApp : +86 13225418790

Email : admin@jatsteel.com

Contact Us

Product Description

Product Display

A516 coil is categorized into 3 grades according to its minimum tensile strength: grade 55, grade 60, grade 65 and grade 70. A516 steel not only has very high strength but also has very good toughness, wear resistance, fatigue resistance, impact resistance, easy welding processability and cold forming performance. It is often used in petrochemical container manufacturing industry such as pressure vessel manufacturing, reactors, heat-exchangers, petrochemical equipment, petroleum machinery, power station equipment, reactors, spherical tanks, nitrogen tanks, gas cylinders, liquefied gas tanks, etc..

Product Parameters

Product Name	A516 Pressure Vessel Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A516	C Thickness (mm)				Mn Thickness (mm)		Si	P	S
A516	6-12.5 mm	12.5-25 mm	25-50 mm	> 50 mm	≤ 12.5 mm	> 12.5 mm	Si	P	S
Level 55	0.18	0.20	0.22	0.25	0.55-0.98	0.60-1.30	0.13-0.45	0.035	0.035
Level 60	0.21	0.23	0.23	0.25	0.6-0.9	0.80-1.20	0.13-0.45	0.035	0.035
Level 65	0.24	0.26	0.26	0.28	0.85-1.20	0.85-1.20	0.13-0.45	0.035	0.035
Level 70	0.27	0.28	0.28	0.3	0.85-1.20	0.85-1.20	0.13-0.45	0.035	0.035

Mechanical properties

ASTM A516	Tensile Strength	Yield	Lower Limit of Elongation (%)
ASTM A516	(MPa)	(MPa)	Gauge Length 50 mm	Gauge Length 200 mm
Level 55	380-515	205	27	23
Level 60	415-550	220	25	21
Level 65	450-585	240	23	19
Level 70	485-620	260	21	17

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³

Scope of Application

ASTM A516 boiler vessel plates are used in the manufacture of gas pressure vessels (liquefied petroleum gas, butane and propane tanks), steam boiler parts, compressors, etc.

Equivalent Material

American Standard		German Standard	European Standard		English Standard
ASTM	ASME	DIN 17155	EN 10028	Material No.	BS1501
Level 60	SA516 Gr.60	HII	P265GH	1.0425	161 430A
Level 65	SA516 Gr.65	17Mn4	P295GH	1.0481	-
Level 70	SA516 Gr.70	-	P355GH	-	224-490 A&B

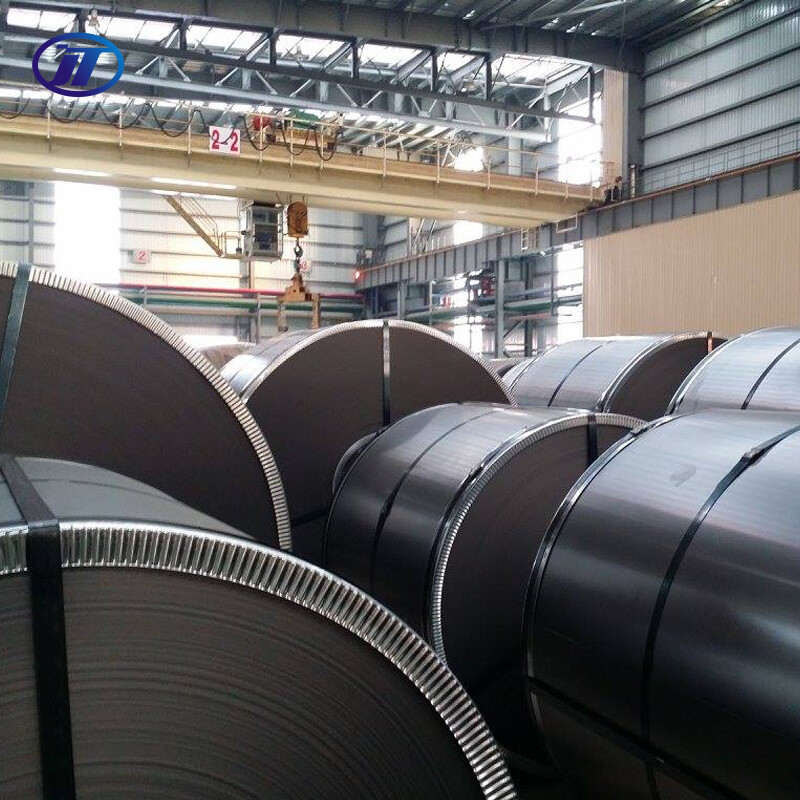

Factory Display
