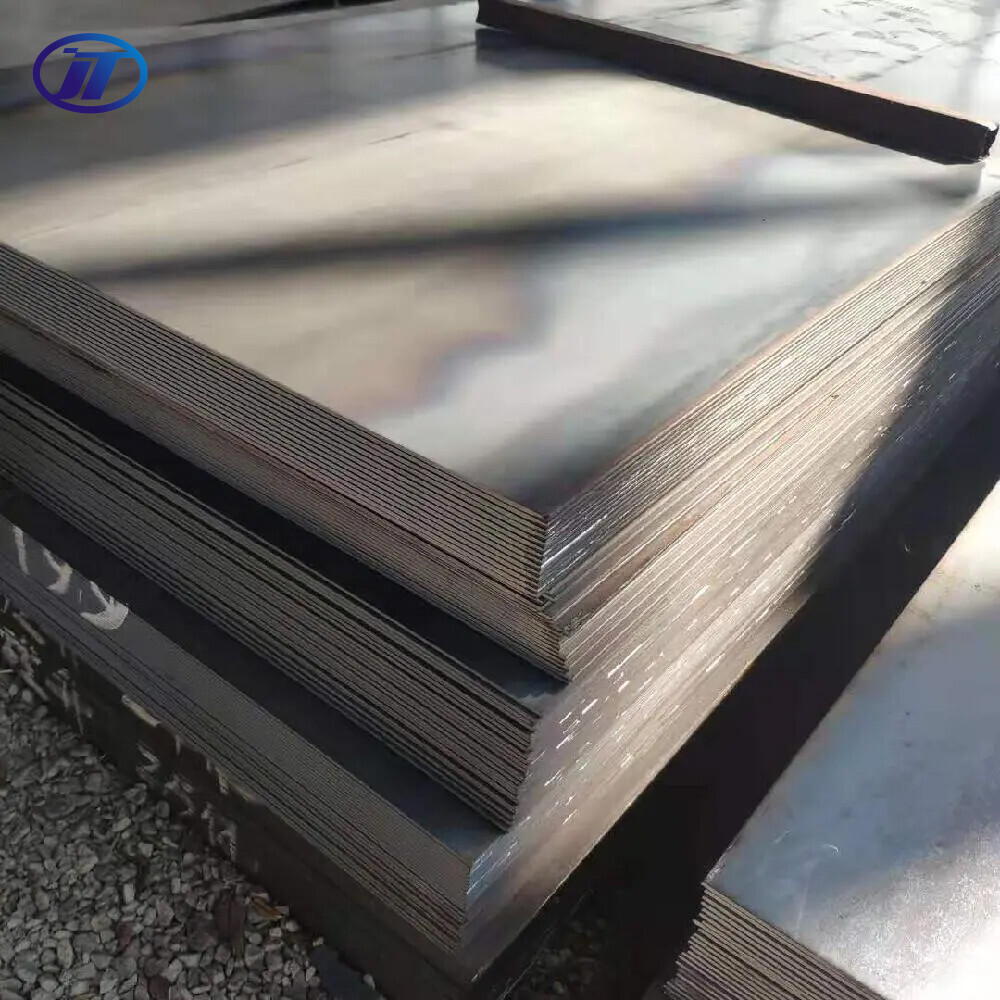

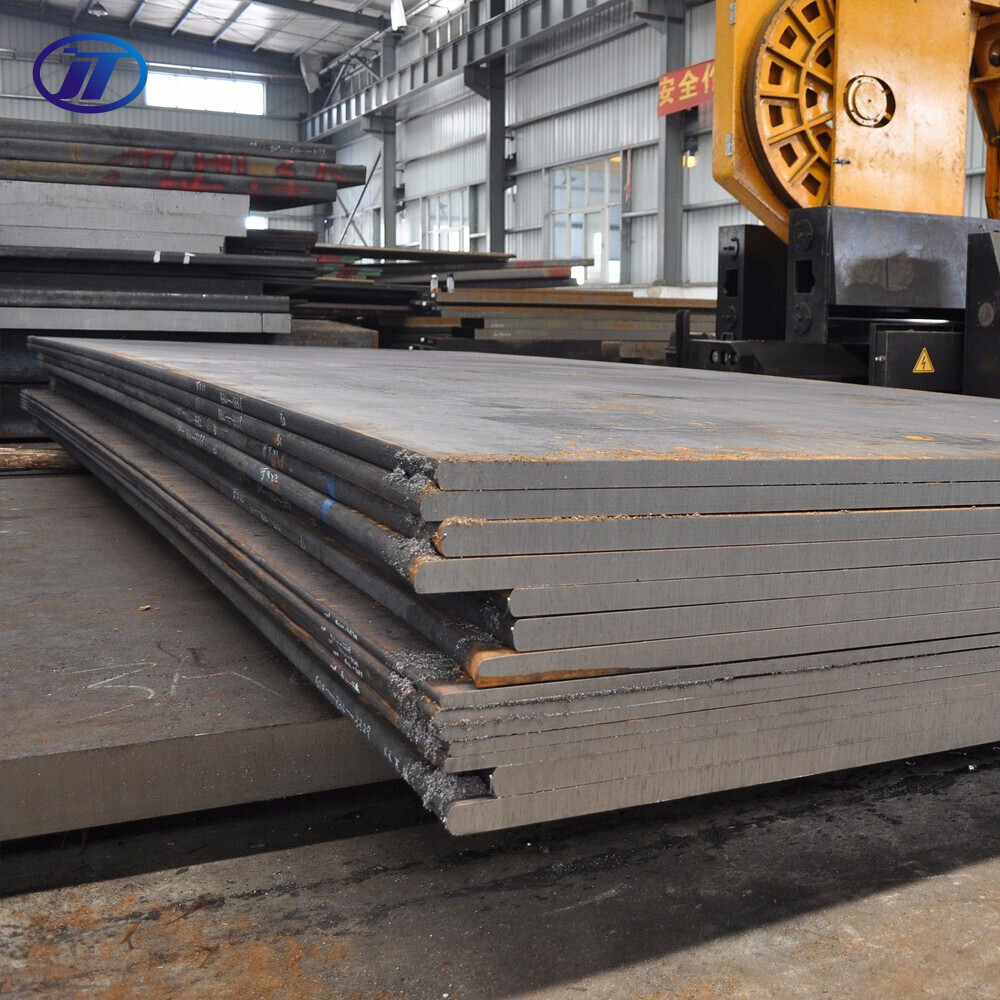

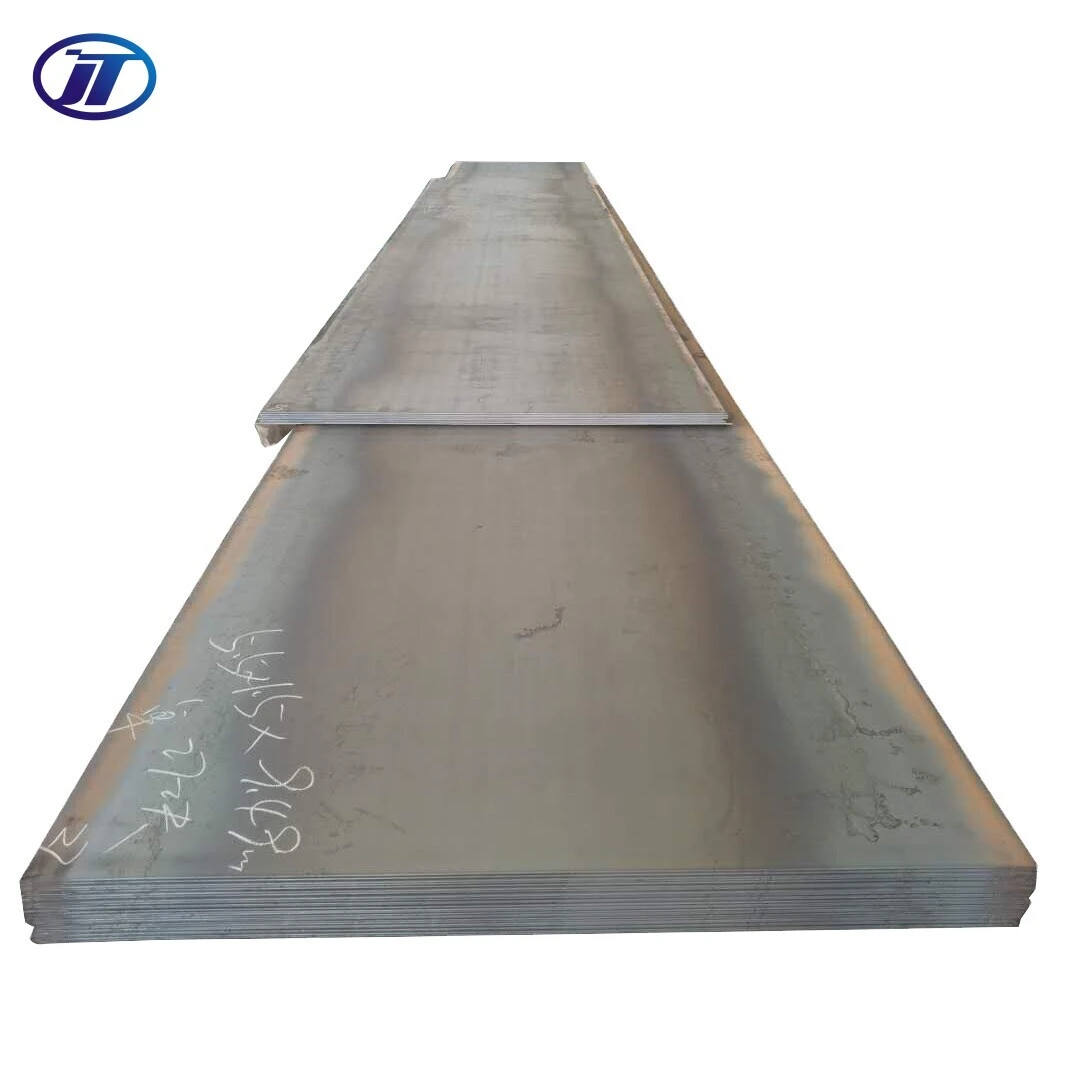

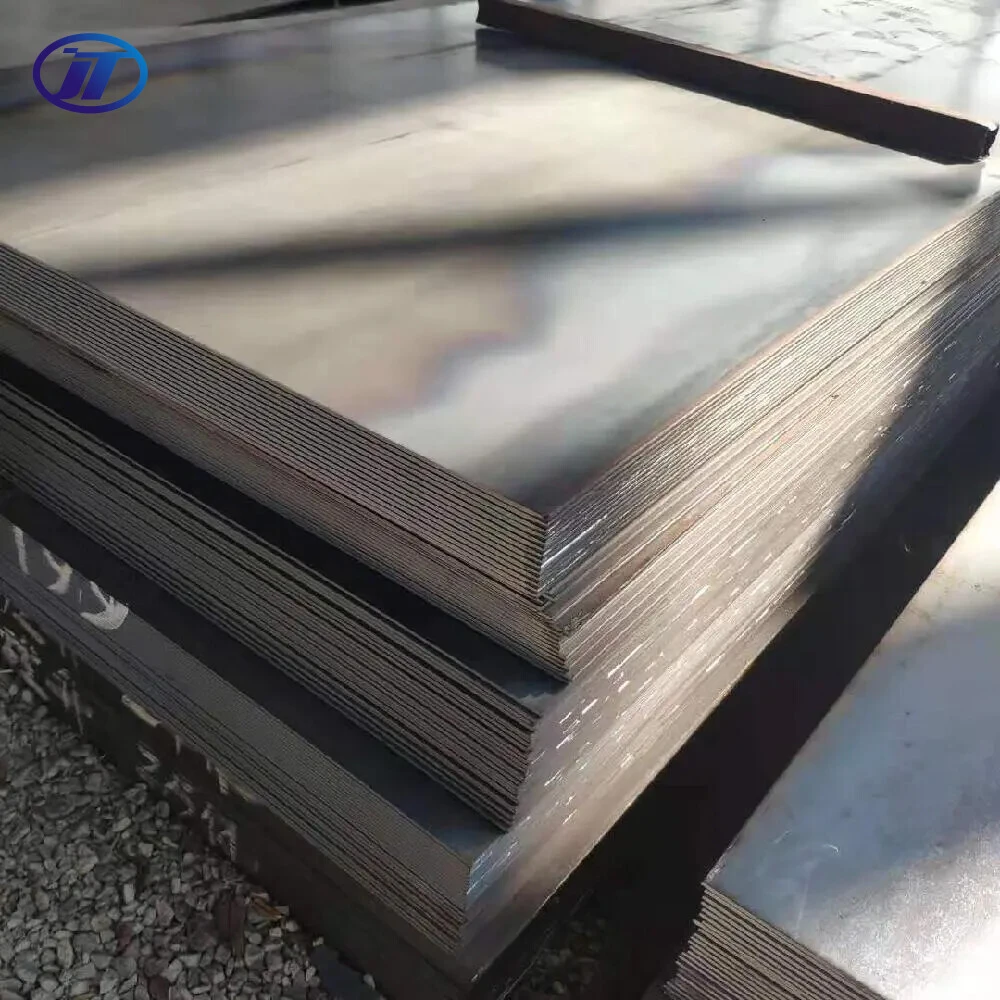

EN10025-2 S235/S275/S355 Carbon Steel Plate

Name: EN10025-2 S235/S275/S355 Carbon Steel Plate
SKU: 0

EN10025-2 steel plate is a low-alloy high-strength structural steel, which is made of carbon structural steel by adding a small amount of alloying elements.

Phone ：+86 13225418790

WhatsApp : +86 13225418790

Email : admin@jatsteel.com

Contact Us

Product Description

Product Display

EN10025-2 steel plate has good welding performance, plasticity, toughness and processing technology, good corrosion resistance, high strength and low cold brittle critical transition temperature. The use of high-strength low-alloy steel can effectively reduce the weight of the structure, improve the strength and stiffness of the structure, and improve durability while reducing the thickness of the structure. EN10025-2 steel plates are commonly used in construction equipment, crane booms, automobile frames and general manufacturing. They are suitable for use in low temperature environments.

Product Parameters

Product Name	EN10025-2 S235/S275/S355 Carbon Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

Brand	C			Si max	Mn max	P max	S max	N max	Cu max
Brand	≤ 16	16-40	> 40	Si max	Mn max	P max	S max	N max	Cu max
S235JR	0.17	0.17	0.20	-	1.40	0.035	0.035	0.012	0.55
S275JR	0.21	0.21	0.22	-	1.50	0.035	0.035	0.012	0.55
S275J0	0.18	0.18	0.18	-	1.50	0.030	0.030	0.012	0.55
S275J2	0.18	0.18	0.18	-	1.50	0.025	0.025	-	0.55
S355JR	0.24	0.24	0.24	0.55	1.60	0.035	0.035	0.012	0.55
S355J0	0.20	0.20	0.22	0.55	1.60	0.030	0.030	0.012	0.55
S355J2	0.20	0.20	0.22	0.55	1.60	0.025	0.025	-	0.55

Mechanical Properties

Thickness mm	Tensile Strength
Thickness mm	≤ 3	3-100	100-150	150-250	250-400
S235JR	360-510	360-510	350-500	340-490	-
S275JR	430-580	410-560	400-540	380-540	-
S275J0	430-580	410-560	400-540	380-540	-
S275J2	430-580	410-560	400-540	380-540	-
S355JR	510-680	470-630	450-600	450-600	-
S355J0	510-680	470-630	450-600	450-600	-
S355J2	510-680	470-630	450-600	450-600	450-600

Thickness mm	Yield Strength
Thickness mm	≤ 16	16-40	40-63	63-80	80-100	100-150	150-200	200-250	250-400
S235JR	235	225	215	215	215	195	185	175	-
S275JR	275	265	255	245	235	225	215	205	-
S275J0	275	265	255	245	235	225	215	205	-
S275J2	275	265	255	245	235	225	215	205	195
S355JR	355	345	335	325	315	295	285	275	-
S355J0	355	345	335	325	315	295	285	275
S355J2	355	345	335	325	315	295	285	275	265

Scope of Application

EN10025-2 steel plate structures are used in trucks, transmission towers, dump trucks, cranes, trailers, bulldozers, excavators, forestry machinery, etc.

Equivalent Material

European Standard	American Standard
S235	A283C
S275	A570Gr40
S355	A572Gr50

Factory Display
